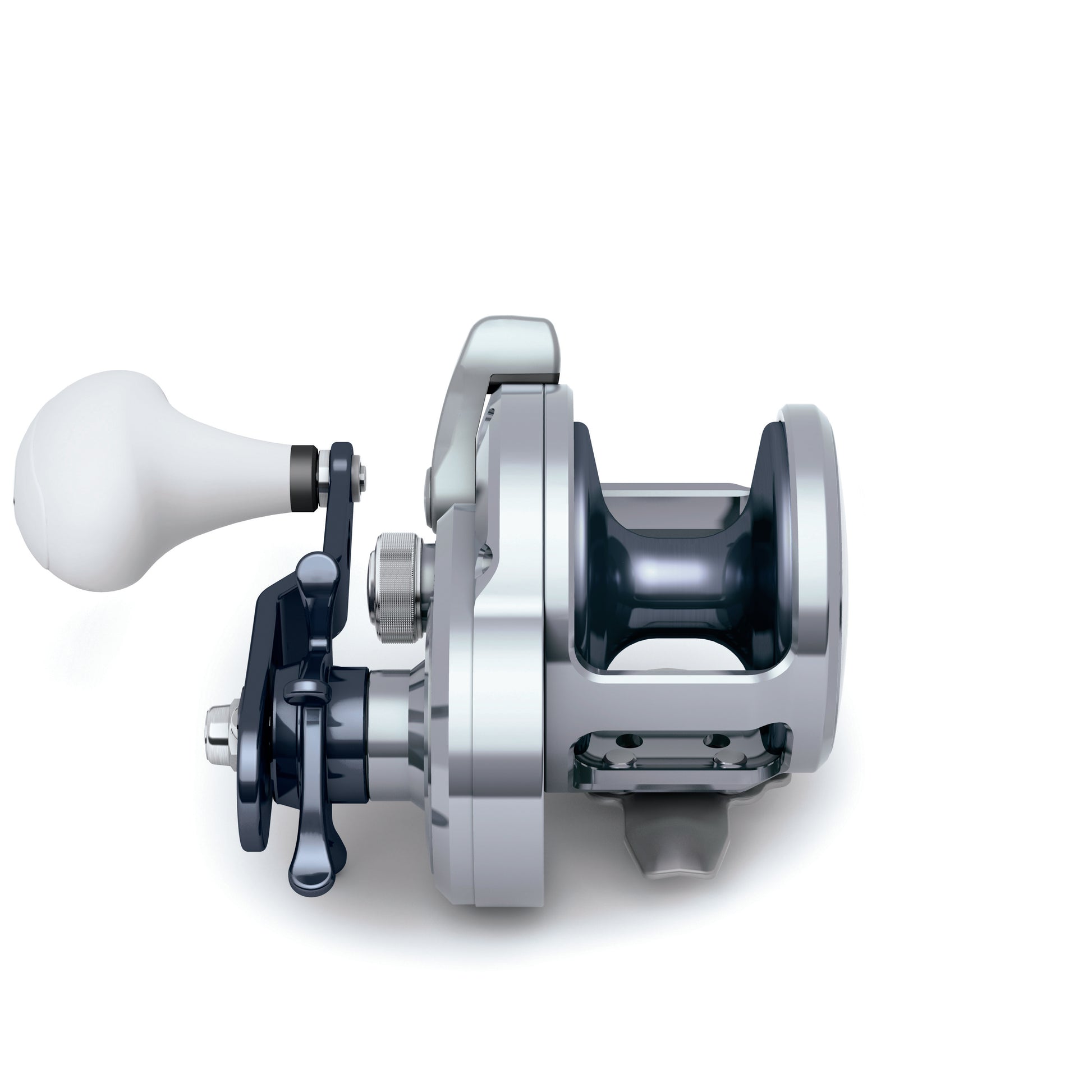

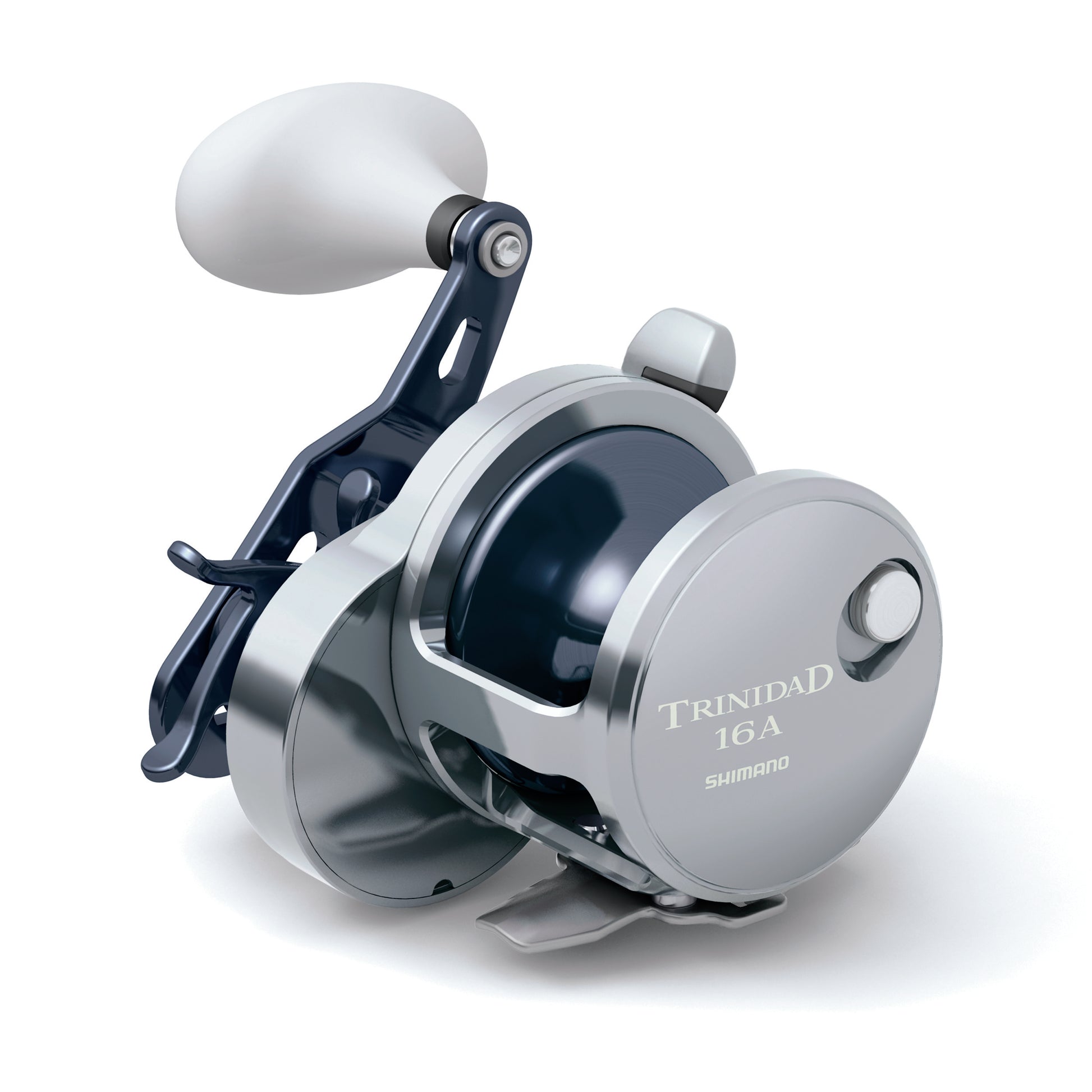

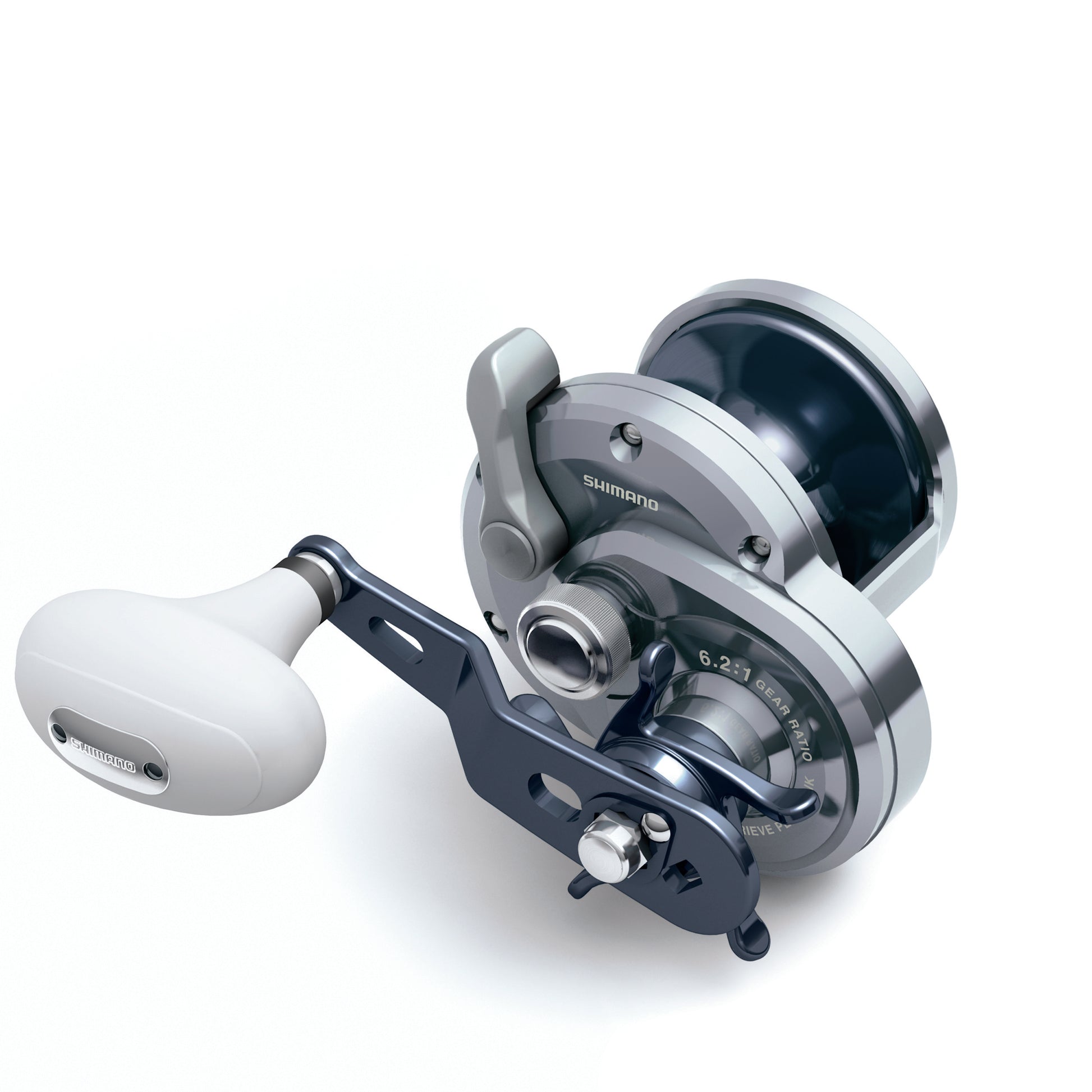

Shimano Trinidad A
DESCRIPTION
Trinidad is a name that resonates with all saltwater anglers and has earned an impeccable reputation for power and reliability. Shimano's quest for the Trinidad A was no easy task: lighter, smaller and more compact were the desired key physical characteristics — and they were accomplished. The performance goal was to build the best casting reel in this category: We shattered our targets and have built a reel for casting which all other casting reels will be measured by.
FEATURES
X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This allows the gears to stay in the same position under the heaviest loads. The added benefit of X-Ship technology is that friction between the spool shaft and gear are eliminated. This further benefits anglers with enhanced casting performance and casting distance of lighter lures.
The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.
S-Compact Body allows for all-day comfort and improved fishability by making the palming side plate up to 25% smaller than the A-Side plate.
The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.
S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.
Super Free Spool eliminates friction on the spool shaft during the cast. Standard baitcasting reels are constructed in a way that when the clutch bar is pressed down, the pinion gear is freed and can actually drag on the spool shaft. This creates friction that can limit the length of a cast. But baitcasting reels with Super Free Spool are constructed so that the pinion gear is supported by a ball bearing. When the clutch is disengaged in preparation for a cast, the pinion gear and spool shaft are kept in perfect alignment. The result: zero friction is placed upon the spool shaft and enhances casting performance.
SPECIFICATIONS
#TN12A
Model: TN12A
#TN14A
Model: TN14A
#TN16NA
Model: TN16NA
#TN16A
Model: TN16A
#TN20A
Model: TN20A
#TN30A
Model: TN30A
#ALL
| Bearings | 9 (8BB; 1RB) |
| Gear Ratio |
#TN12A6.3:1 #TN14A6.3:1 #TN16A #TN16NA6.2:1 #TN20A6.2:1 #TN30A6.2:1 |
| Line Per Handle Turn |
#TN12A38" #TN14A38" #TN16A #TN16NA46" #TN20A46" #TN30A46" |
| Weight |
#TN12A13.9 oz #TN14A14.8 oz #TN16NA19.3 oz #TN16A19.4 oz #TN20A19.8 oz #TN30A20.5 oz |
|
Line Capacity (Lb Test/Yards) |
#TN12AMono: 12/300, 15/215, 20/150 Power Pro: 40/280, 50/275, 65/175 #TN14AMono: 12/420, 15/280, 20/200 Power Pro: 40/375, 50/370, 65/240 #TN16NAMono: 15/260, 20/200, 25/150 Power Pro: 50/370, 65/235, 80/190 #TN16AMono: 15/420, 20/300, 25/240 Power Pro: 50/530, 65/330, 80/250 #TN20AMono: 20/410, 25/330, 30/280 Power Pro: 50/710, 65/375, 80/310 #TN30AMono: 25/420,30/350 Power Pro: 50/1015, 65/515, 80/415 |
| Max Drag |
#TN12A17 Lbs #TN14A17 Lbs #TN16A #TN16NA25 Lbs #TN20A25 Lbs #TN30A25 Lbs |
| Retrieve | Right |
