Shimano Tranx 400B '26
Shimano Tranx 400B '26
Shimano
Select a variant to see specs.
Couldn't load pickup availability
DESCRIPTION
TAME THE BEAST

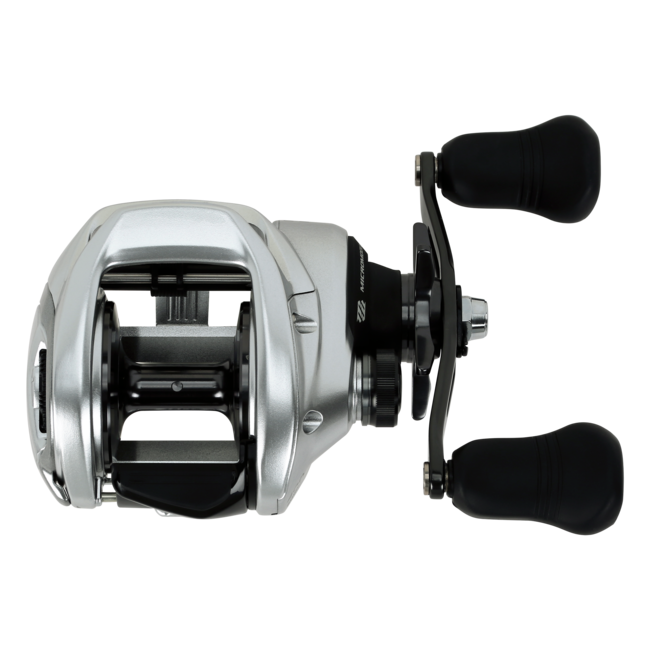

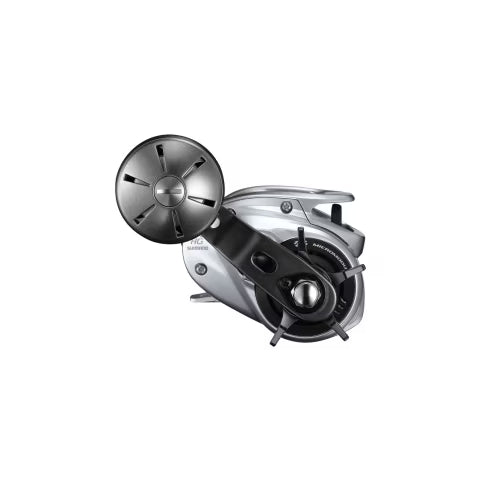

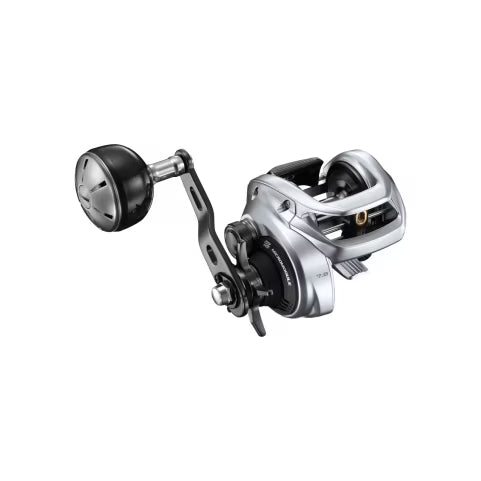

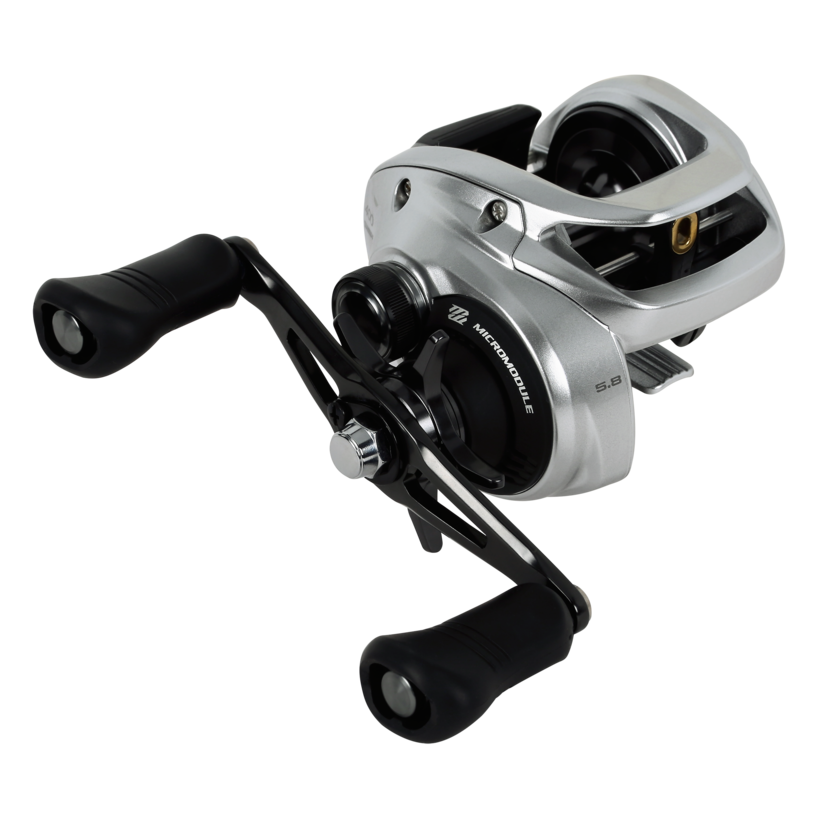

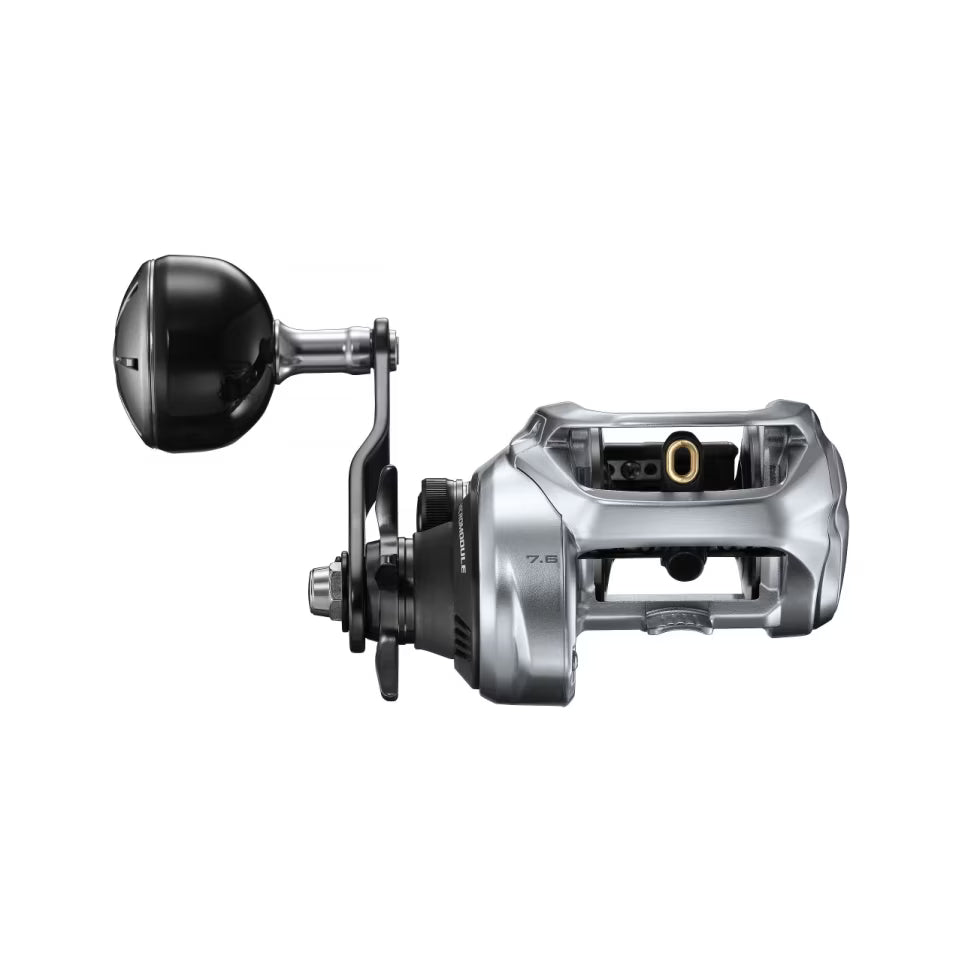

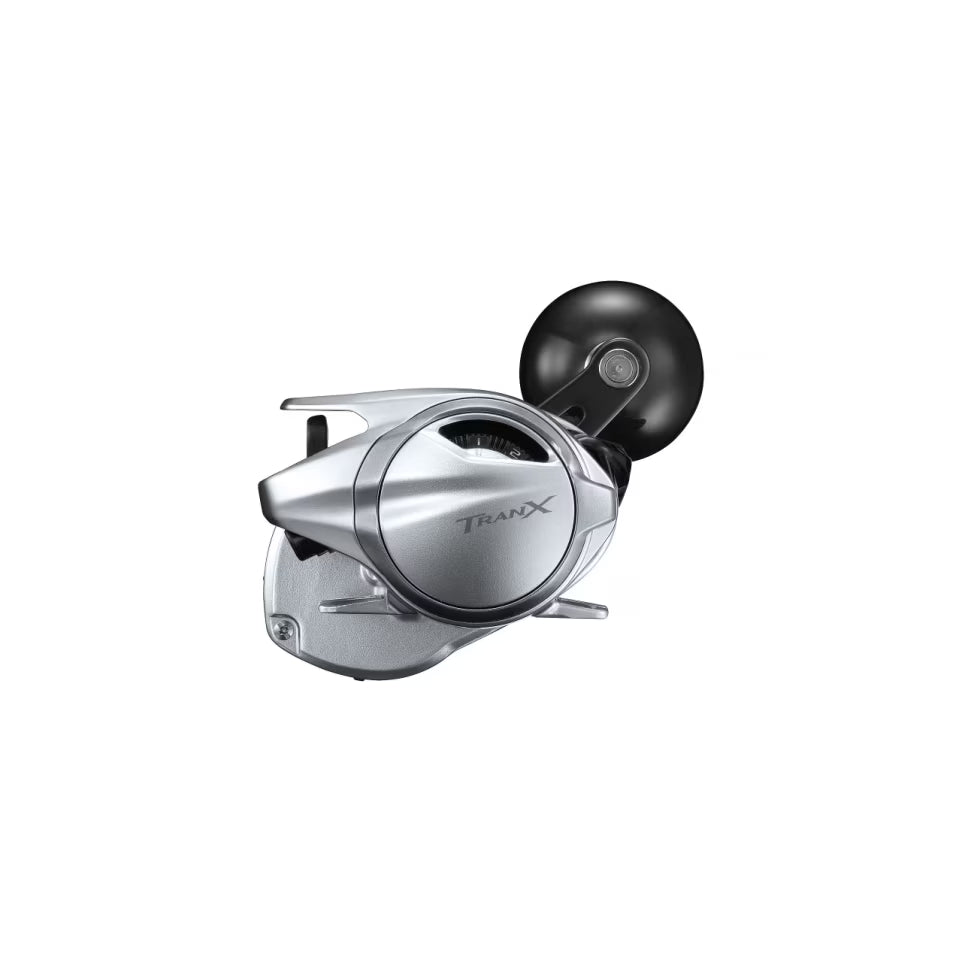

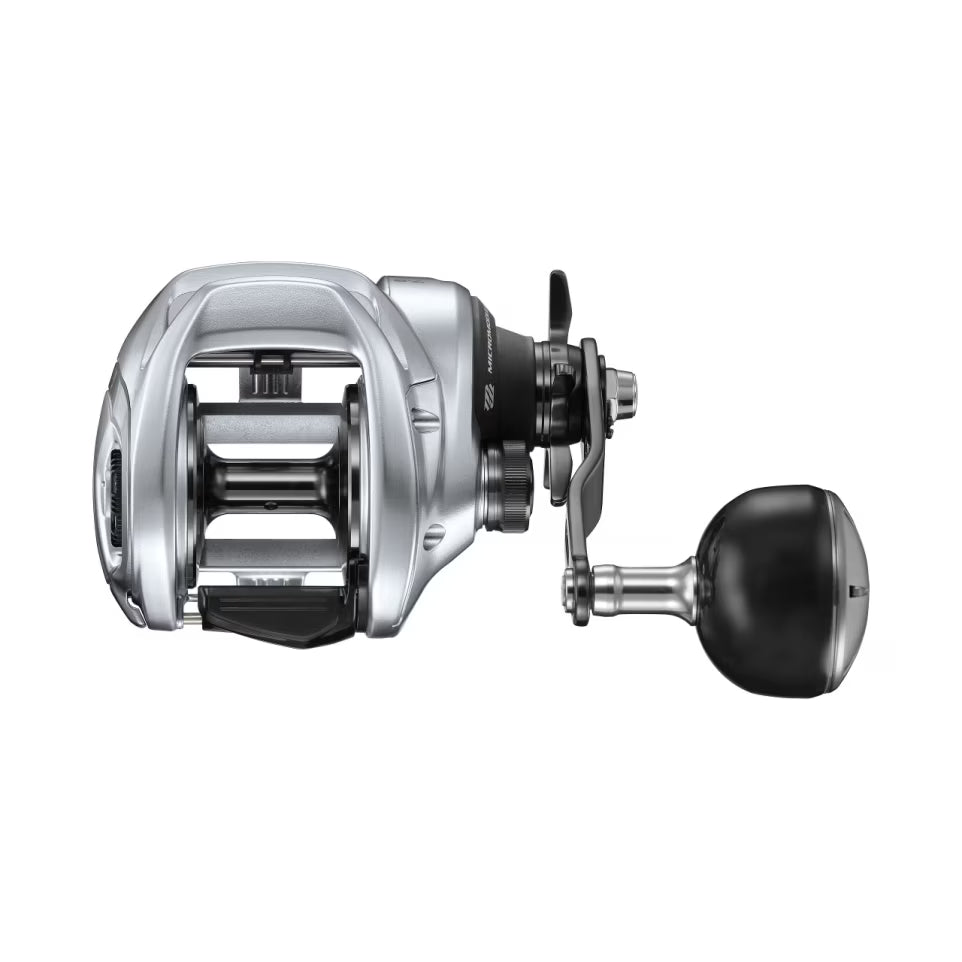

The Shimano Tranx 400 B is the latest iteration in the legendary Tranx family, a powerhouse low-profile baitcasting reel built for throwing big baits, at the most hardcore fish that swim. CoreSolid and HAGANE Body technologies deliver unmatched rigidity and flex-free cranking, ideal for heavy loads. SVS Infinity MD Tune braking offers precise control for casting heavy baits. X-Ship boosts gear durability and casting distance, while Cross Carbon Drag ensures smooth, reliable performance. The S3D Spool tech minimizes vibration for ultra-smooth retrieves, ideal for long days on the water. Versatile across salt and freshwater applications, the redesigned Tranx 400 B is a vital tool in the pursuit of trophies.
FEATURES
Hagane is a Shimano reel design concept created to withstand continual use and extreme abuse. Hagane is an innovation with built-in toughness and durability that works alongside Shimano's precision engineering. Hagane is for all anglers.
The MicroModule Gear system creates a smooth retrieve by utilizing smaller teeth to increase the number of contact points between the drive gear and pinion gear. Ultimately, this produces a more efficient gear train with less of a gear feel.
X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This allows the gears to stay in the same position under the heaviest loads. The added benefit of X-Ship technology is that friction between the spool shaft and gear are eliminated. This further benefits anglers with enhanced casting performance and casting distance of lighter lures.
The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.
X-Protect provides high level water resistance to the inside bearing of drive gear shaft with waterproof construction.
CoreSolid body integrates the B-Side Plate, levelwind guard and frame into a solid one-piece construction. This delivers an unprecedented feel of rigidity and sensitivity, and is the first design of this type in a low-profile baitcast reel.
SilentTune
By applying slight pressure to the bearing holding the spool, SilentTune reduces the vibration of the bearing during high-speed rotation. This improves the quietness while casting and the rise of the spool rotation becomes even smoother.
VBS uses centrifugal force, rather than magnets, to aid in controlling the cast. When turned on, the individual brake weights are forced outward at the beginning of the cast — when backlashes most often occur — to create friction that reduces the speed of the spool. Once the spool speed begins to slow, the pressure with which the brake weights contact the raceway lessens and allows the spool to continue spinning.
The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.
S3D technology leads to significantly reduced spool vibration. By designing and constructing a balanced and uniform thin-wall aluminum spool, S3D creates an incredibly smooth feeling when casting and retrieving lures.
S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.
Super Free Spool eliminates friction on the spool shaft during the cast. Standard baitcasting reels are constructed in a way that when the clutch bar is pressed down, the pinion gear is freed and can actually drag on the spool shaft. This creates friction that can limit the length of a cast. But baitcasting reels with Super Free Spool are constructed so that the pinion gear is supported by a ball bearing. When the clutch is disengaged in preparation for a cast, the pinion gear and spool shaft are kept in perfect alignment. The result: zero friction is placed upon the spool shaft and enhances casting performance.
SPECIFICATIONS
#TRX300B
Model: TRX300B
#TRX301BLEFTY
Model: TRX301B
#TRX300HGB
Model: TRX300HGB
#TRX301HGBLEFTY
Model: TRX301BHGB
#all
| Bearings | 6 (5BB; 1RB) |
| Gear Ratio |
#TRX300B #TRX301BLEFTY5.8:1 #TRX300HGB #TRX301HGBLEFTY7.6:1 |
| Line Per Handle Turn |
#TRX300B #TRX301BLEFTY31” #TRX300HGB #TRX301HGBLEFTY41" |
| Weight |
#TRX300B #TRX301BLEFTY11.8 oz #TRX300HGB #TRX301HGBLEFTY12.2 oz |
|
Line Capacity |
#TRX300B #TRX301BLEFTY #TRX300HGB #TRX301HGBLEFTYMono: 12/230, 14/180, 17/150 |
| Max Drag |
#TRX300B #TRX301BLEFTY22 Lbs #TRX300HGB #TRX301HGBLEFTY18 Lbs |
| Retrieve |
#TRX301HGBLEFTY #TRX301BLEFTYLeft #TRX300HGB #TRX300BRight |
| Handle Type |
#TRX300B #TRX301BLEFTYDouble Paddle Handle With Rubber Knobs #TRX300HGB #TRX301HGBLEFTYPower Handle With Ci4+ Knob |
