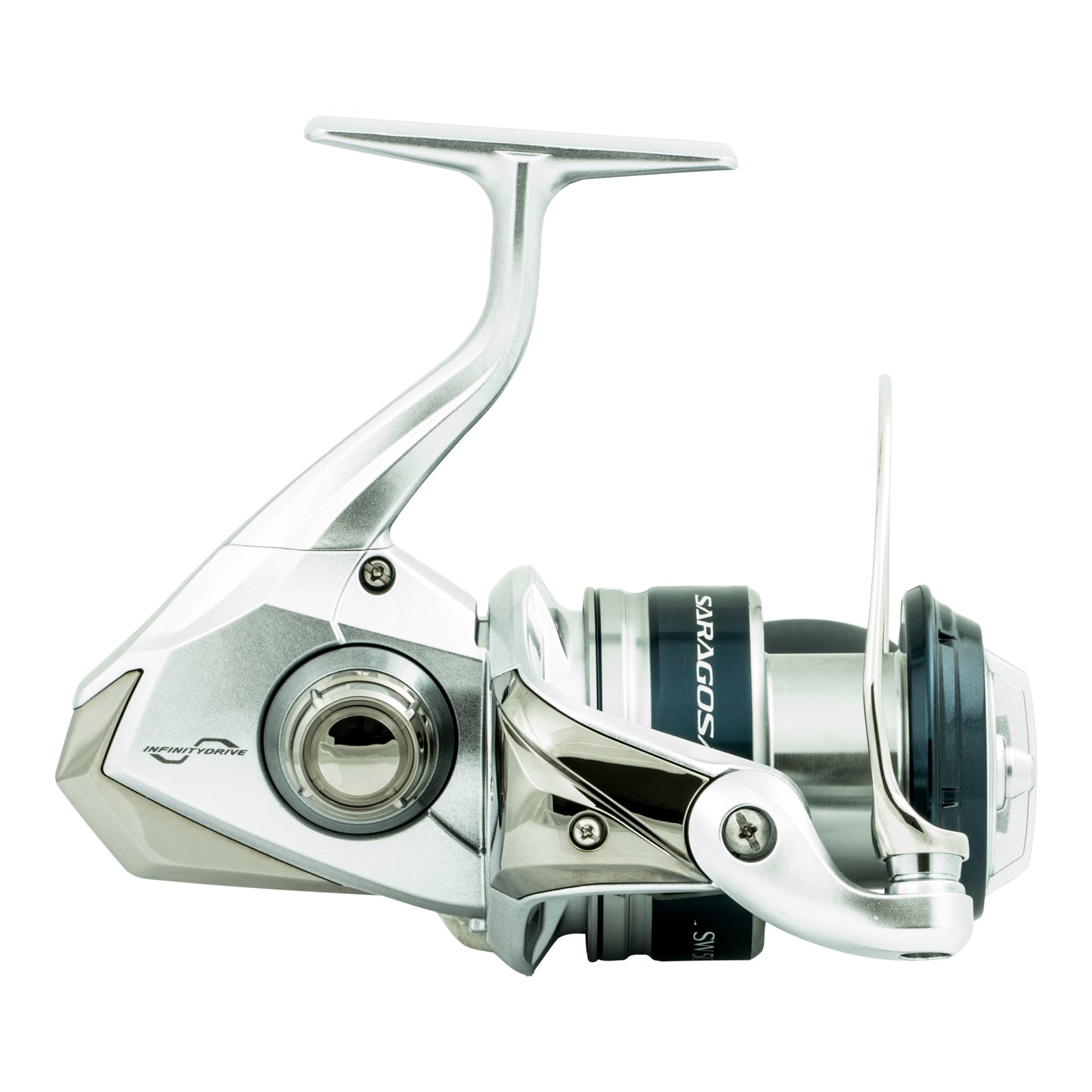

Shimano Saragosa SW A


  • $269.99
    Unit price per

A true glutton for punishment, the legacy of the versatile Saragosa SW continues with enhanced capabilities and features to dominate the saltwater realm. The Saragosa SW now features Infinity Drive Technology and increases the reel’s winding torque under load compared to its predecessor to give anglers a distinct advantage over hard-fighting game fish. Combined with a battle-tested rigid HAGANE Body that won’t flex under immense loads and the HAGANE Gear to create eternally smooth reeling, the capabilities of the Saragosa SW make it a thoroughbred workhorse among saltwater spinning reels. Benefiting from an IPX8-rated waterproof body, Saragosa SW also features a waterproof Cross Carbon drag and X-Protect for high-level water resistance to create long-lasting durability without sacrificing performance. No matter whether anglers are fishing inshore or offshore, jigging for bottom fish or casting baits at tailing fish, they can count on — just like they always have — the Saragosa SW to stay smooth no matter the conditions and perform when needed most. The bar is raised for saltwater spinning reels.


With amazing strength and durability, the HAGANE Gear is at the very heart of most Shimano reels. Shimano, through the application of state-of-the-art technologies, gives anglers the long-lasting smoothness and pleasure that is felt when anglers first use a reel, over and over again. No cutting work is applied to the teeth of the drive gear during fabrication, instead the entire surface is calculated in minute detail by special 3D-design and then formed by Shimano's cold-forging technology. The result is assured resilience. HAGANE Gear is the fruit of Shimano's inexhaustible pursuit for durability — the strength and power of forged metal continues to represent the fundamental concept of Shimano reels.

X-Ship Spinning

X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This allows the gears to stay in the same position under the heaviest loads. The added benefit of X-Ship technology is that friction between the spool shaft and gear are eliminated. This further benefits anglers with enhanced casting performance and casting distance of lighter lures.

HAGANE Body Spinning

The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.

Infinity Drive | Spinning Reels

The Infinity Drive structure is an advanced structure that creates exceptionally light winding. The main shaft, which had previously been supported by the pinion gear, is now supported by a new and unique low-friction bushing that significantly decreases frictional resistance. In addition, the main shaft has undergone a proprietary surface treatment and special processing to drastically reduce rotational torque, constructing a reel that can actively wind even under heavy loads.


By providing dependable sealing structures and gaskets at 12 critical locations throughout the reel body, Shimano is able to create a water-resistant structure that is highly reliable and durable while ensuring that it can hold up when used in extreme saltwater conditions.


For medium and small general-purpose spinning reels, which require lighter spinning, we focused on a non-contact structure that does not compromise the lightness of the spinning. In addition to conventional water-repellent treatment, a labyrinth structure that suppresses water penetration is combined to achieve high water-resistant performance despite the non-contact nature of the structure. It is used in the stopper bearing section and line roller section. Large reels for saltwater, a contact-type water-resistant structure is used for large spinning reels that require higher water-resistant performance. By physically cutting off the entry path of seawater with a low-sliding seal member, high water-resistant performance is achieved while suppressing rotational resistance. The stopper bearing and line roller parts are adopted, and the stopper bearing part in particular achieves a water-resistant rating equivalent to IPX8.

X-Tough Drag

X-Tough Drag features dramatically enhanced smoothness, control and toughness to anticipate the vigorous speed of bluefin tuna and giant trevally. X-Tough Drag further improves heat resistance and durability with construction that incorporates metal-only drag washers and abrasion-resistant carbon washers as well increased stability by supporting the spool from both the top and bottom.


The spool has a special spool ring shape. This creates a rectifying effect on the line and realizes both suppression of line trouble and long casting performance

Cross Carbon Drag Spinning

The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.

S A-RB Spinning

S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.

One-Piece Bail

One-Piece Bail allows the line to travel unimpeded to the line roller. The seamless design reduces friction and decreases the chance of tangles or the line catching on the bail arm.


 Model: SRG5000SWAXG

Bearings 6 (5BB; 1RB)
Gear Ratio 6.2:1
Line Per Handle Turn 41"
Weight  15.9 oz

Line Capacity

(Lb Test/Yards)

Mono: 10/240, 12/195, 14/165

Power Pro: 20/245, 30/225, 40/175

Max Drag 22 Lbs
Retrieve Reversible



Model: SRG6000SWAHG

Bearings 6 (5BB; 1RB)
Gear Ratio 5.7:1
Line Per Handle Turn 41”
Weight  16.0 oz

Line Capacity

(Lb Test/Yards)

Mono: 12/265, 16/170, 20/120

Power Pro: 30/295, 50/195, 65/140

Max Drag 22 Lbs
Retrieve Reversible



 Model: SRG8000SWAHG

Bearings 6 (5BB; 1RB)
Gear Ratio 5.6:1
Line Per Handle Turn 42”
Weight  23.8 oz

Line Capacity

(Lb Test/Yards)

Mono: 14/300, 16/250, 20/185

Power Pro: 40/340, 50/265, 65/215

Max Drag 35 Lbs
Retrieve Reversible


Model: SRG10000SWAPG

Bearings 6 (5BB; 1RB)
Gear Ratio 4.9:1
Line Per Handle Turn 40”
Weight  24.3 oz

Line Capacity

(Lb Test/Yards)

Mono: 12/500, 16/320, 20/220

Power Pro: 50/360, 65/260, 80/215

Max Drag 33 Lbs
Retrieve Reversible


Model: SRG20000SWAPG

Bearings 7 (6BB; 1RB)
Gear Ratio 4.4:1
Line Per Handle Turn 41”
Weight  33.0 oz

Line Capacity

(Lb Test/Yards)

Mono: 20/460, 25/380, 30/320

Power Pro: 65/490, 80/400, 100/340

Max Drag 44 Lbs
Retrieve Reversible
