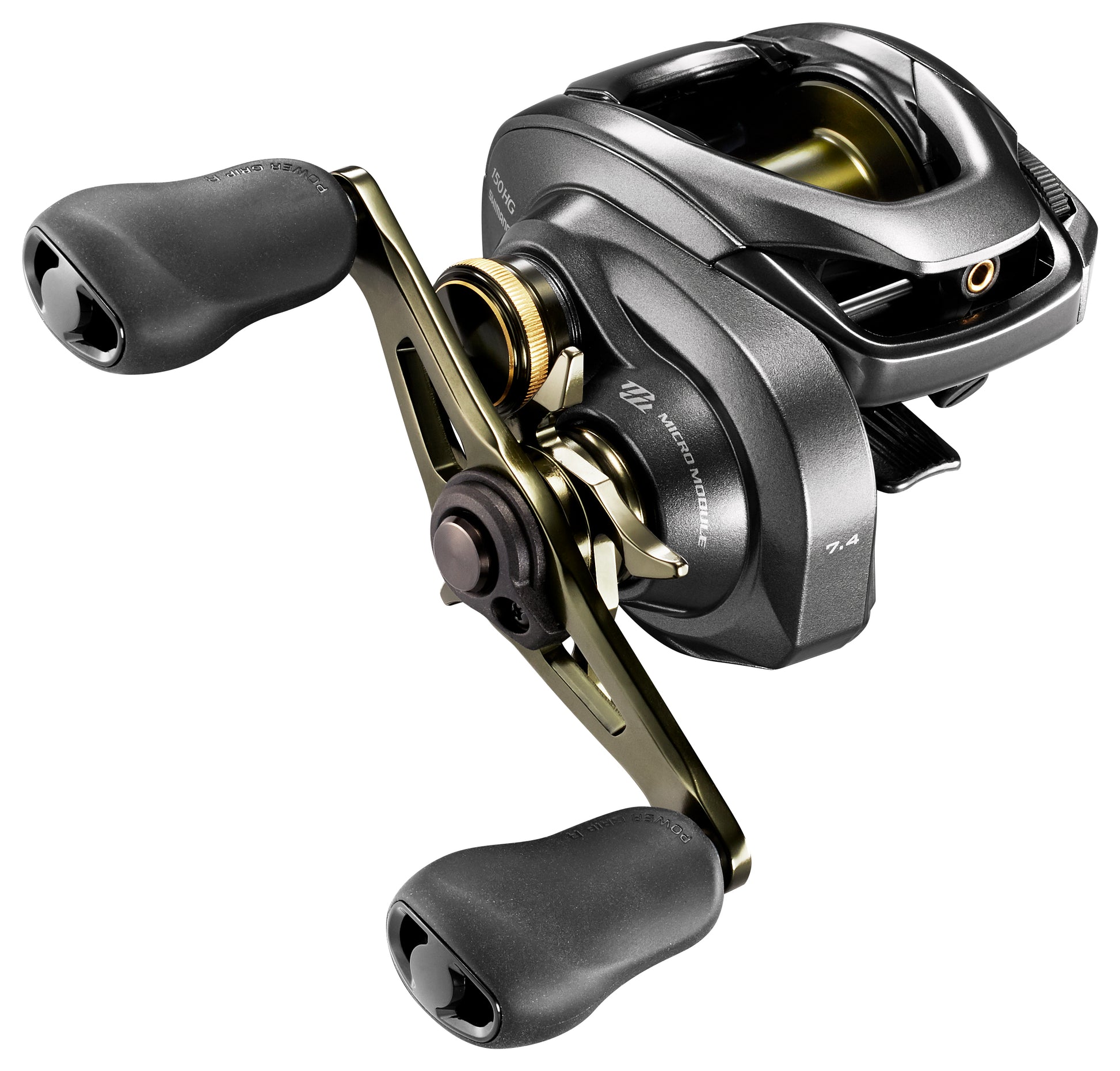

Shimano Curado DC

Shimano Curado DC

Shimano

  • $269.99
    Unit price per

Will be in stock after

DESCRIPTION

Built on the legacy of durability, dependability and versatility that Curado is known for, now with Shimano's unique DC braking technology. Shimano's new Digital Control braking system utilizes a microcomputer to monitor spool speed 1,000 times every second and apply the perfect amount of brake to prevent backlash and maximize distance. Anglers of all skill levels will appreciate less thumbing and trouble-free casting in all conditions.

FEATURES

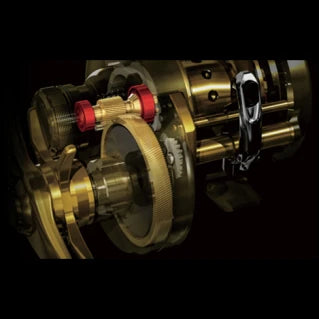

MicroModule Gear Baitcasting

The MicroModule Gear system creates a smooth retrieve by utilizing smaller teeth to increase the number of contact points between the drive gear and pinion gear. Ultimately, this produces a more efficient gear train with less of a gear feel.

X-Ship Baitcasting

X-Ship provides improved gear durability. By supporting the pinion gear on both ends with bearings, the pinion gear maintains precise alignment with the drive gear. This allows the gears to stay in the same position under the heaviest loads. The added benefit of X-Ship technology is that friction between the spool shaft and gear are eliminated. This further benefits anglers with enhanced casting performance and casting distance of lighter lures.

HAGANE Body Baitcasting

The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.

I-DC4

The Intelligent Digital Control braking system features four easy-to-use modes that can be set using the external dial for Max Distance, Braided/Monofilament line, Fluorocarbon line and Skipping. These four modes allow anglers to fish a wide variety of lures in any condition with minimal adjustments to the reel. I-DC4 reads various situation changes from casting to the arrival of the lure at the target spot by reading the spool's rotation and makes fine adjustments to the brake accordingly.

CI4+ Baitcasting

CI4 is a Shimano original material reinforced with carbon fiber that is lighter and has a higher strength than conventional resin material. CI4+ is an advanced version of the original CI4 material and is 2.5x more rigid than its predecessor. While improving lightness and rigidity, reel bodies and rotors built with CI4+ are further reduced in size and weight.

Cross Carbon Drag Baitcasting

The Cross Carbon Drag material provides a wider range of drag settings compared to traditional drag materials. The Cross Carbon Drag provides the smoothest Shimano drag performance ever while providing anglers with increased durability.

S3D Spool

S3D technology leads to significantly reduced spool vibration. By designing and constructing a balanced and uniform thin-wall aluminum spool, S3D creates an incredibly smooth feeling when casting and retrieving lures.

S A-RB Baitcasting

S A-RB bearings are put through the same process as Shimano’s A-RB bearings but feature shields on both sides of the bearings. These shields reduce the possibility of salt or sand inhibiting rotation of the bearing.

Super Free Spool
Super Free Spool eliminates friction on the spool shaft during the cast. Standard baitcasting reels are constructed in a way that when the clutch bar is pressed down, the pinion gear is freed and can actually drag on the spool shaft. This creates friction that can limit the length of a cast. But baitcasting reels with Super Free Spool are constructed so that the pinion gear is supported by a ball bearing. When the clutch is disengaged in preparation for a cast, the pinion gear and spool shaft are kept in perfect alignment. The result: zero friction is placed upon the spool shaft and enhances casting performance.
SPECIFICATIONS

Model: CUDC150

Bearings

7 (6BB; 1RB)

Gear Ratio

6.2:1

Line Per Handle Turn

26"

Weight

7.8 oz

Line Capacity

Mono: 10/120, 12/110, 14/90

Power Pro: 20/150, 30/135, 40/105

Max Drag

11 Lbs

Retrieve

Right

Handle Type

Double Paddle Handle With Rubber Knobs
