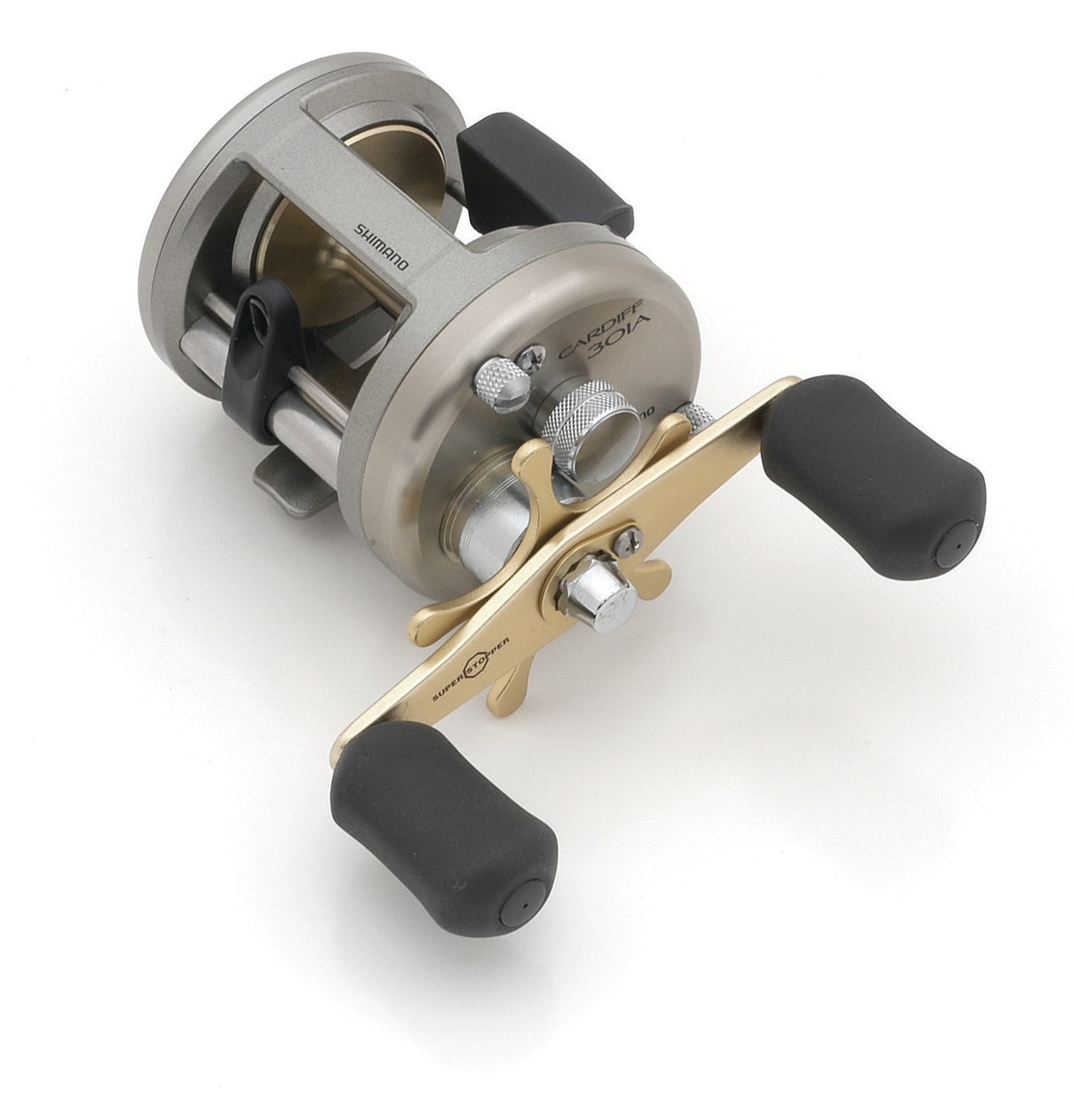

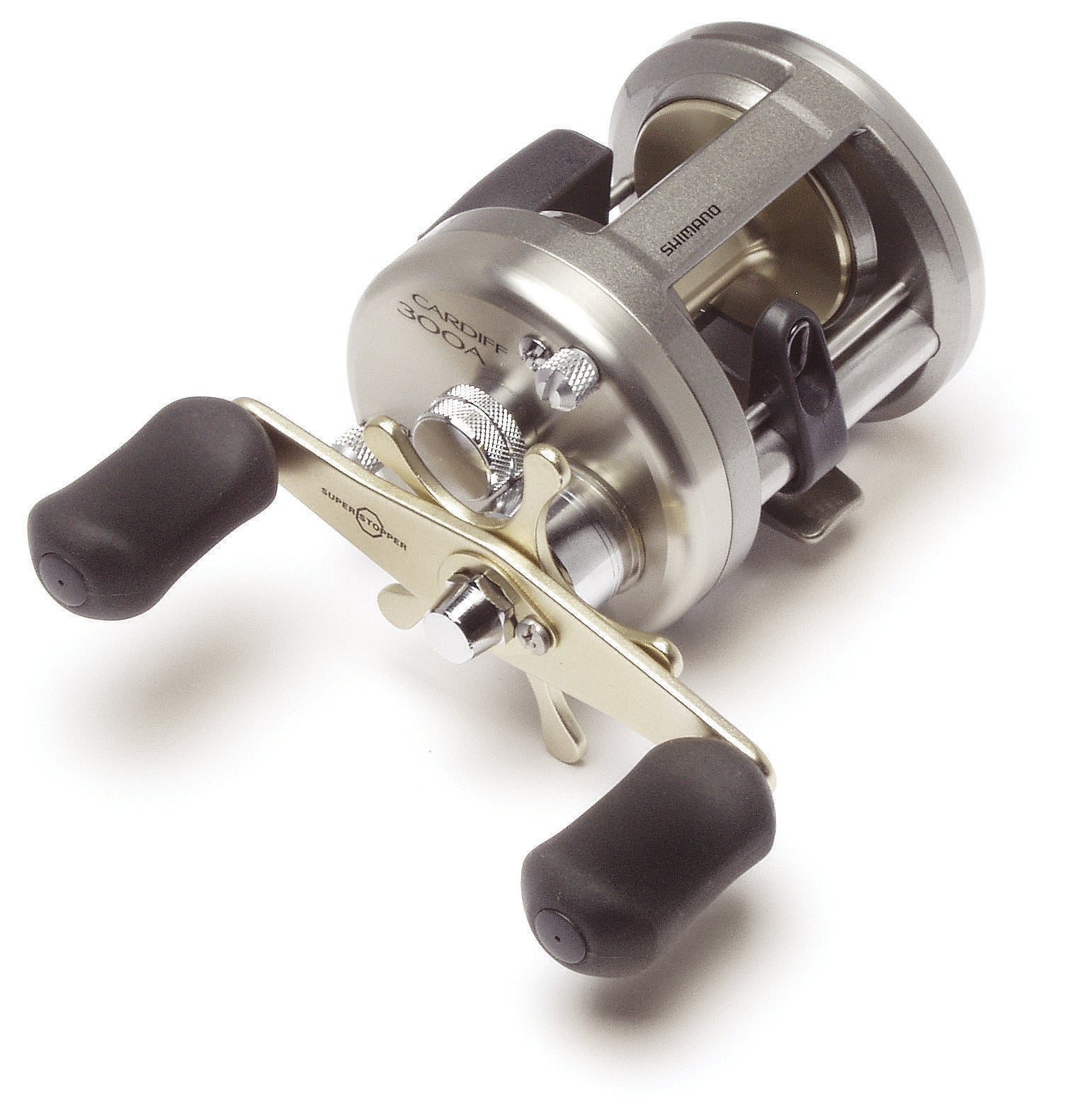

Shimano Cardiff A
DESCRIPTION
What do you get when you design a reel with five silky-smooth A-RB bearings, a lightweight, diecast one-piece aluminum frame, Super Stopper anti-reverse and Shimano's VBS braking system? You get a reel you can depend on, day-in and day-out, that will perform beyond your expectations. That's the Cardiff.
FEATURES
The HAGANE Body is a metal reel body with high rigidity. The body rigidity and impact resistance virtually eliminates body flexing on the reel while fighting fish. The result transforms the angler's actions directly into cranking power, increasing efficiency through strength.
VBS uses centrifugal force, rather than magnets, to aid in controlling the cast. When turned on, the individual brake weights are forced outward at the beginning of the cast — when backlashes most often occur — to create friction that reduces the speed of the spool. Once the spool speed begins to slow, the pressure with which the brake weights contact the raceway lessens and allows the spool to continue spinning.
A-RB stainless-steel ball bearings are specially treated to drastically increase the corrosion resistance of the bearing. These bearings will last at least 10 times longer than standard stainless-steel ball bearings in high salinity environments.
SPECIFICATIONS
#CDF200A
Model: CDF200A
|
Bearings |
5 (4BB; 1RB) |
|
Gear Ratio |
5.8:1 |
|
Line Per Handle Turn |
24" |
|
Weight |
8.6 oz |
|
Line Capacity |
Mono: 8/230, 10/210, 14/120 Power Pro: 40/135, 50/130, 65/90 |
|
Max Drag |
10 Lbs |
|
Retrieve |
Right |
#CDF201ALEFTY
Model: CDF201A
|
Bearings |
5 (4BB; 1RB) |
|
Gear Ratio |
5.8:1 |
|
Line Per Handle Turn |
24" |
|
Weight |
8.6 oz |
|
Line Capacity |
Mono: 8/230, 10/210, 14/120 Power Pro: 40/135, 50/130, 65/90 |
|
Max Drag |
10 Lbs |
|
Retrieve |
Left |
#CDF300A
Model: CDF300A
|
Bearings |
5 (4BB; 1RB) |
|
Gear Ratio |
5.8:1 |
|
Line Per Handle Turn |
24" |
|
Weight |
8.9 oz |
|
Line Capacity |
Mono: 12/230, 14/180, 17/150 Power Pro: 40/195, 50/190, 65/125 |
|
Max Drag |
10 Lbs |
|
Retrieve |
Right |
#CDF301ALEFTY
Model: CDF301A
|
Bearings |
5 (4BB; 1RB) |
|
Gear Ratio |
5.8:1 |
|
Line Per Handle Turn |
24" |
|
Weight |
8.9 oz |
|
Line Capacity |
Mono: 12/230, 14/180, 17/150 Power Pro: 40/195, 50/190, 65/125 |
|
Max Drag |
10 Lbs |
|
Retrieve |
Left |
#CDF400A
Model: CDF400A
|
Bearings |
5 (4BB; 1RB) |
|
Gear Ratio |
5.2:1 |
|
Line Per Handle Turn |
22" |
|
Weight |
11.9 oz |
|
Line Capacity |
Mono: 12/330, 14/260, 20/160 Power Pro: 50/305, 65/180, 80/160 |
|
Max Drag |
11 Lbs |
|
Retrieve |
Right |
#CDF401ALEFTY
Model: CDF401A
|
Bearings |
5 (4BB; 1RB) |
|
Gear Ratio |
5.2:1 |
|
Line Per Handle Turn |
22" |
|
Weight |
11.9 oz |
|
Line Capacity |
Mono: 12/330, 14/260, 20/160 Power Pro: 50/305, 65/180, 80/160 |
|
Max Drag |
11 Lbs |
|
Retrieve |
Left |
